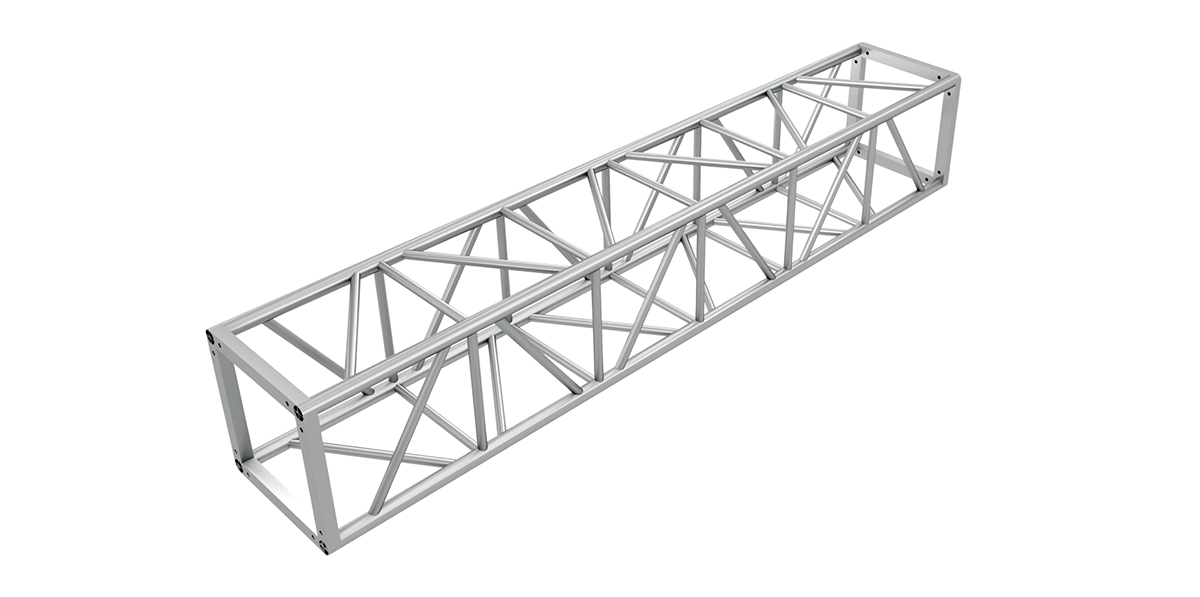

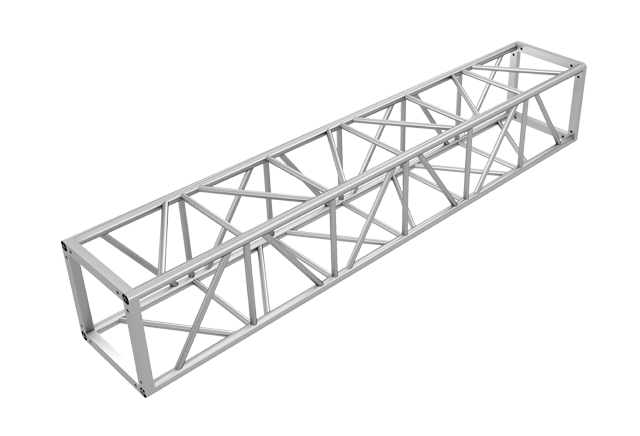

TD-BC52S


Bolt Mounted  Series



   TD-BC52S

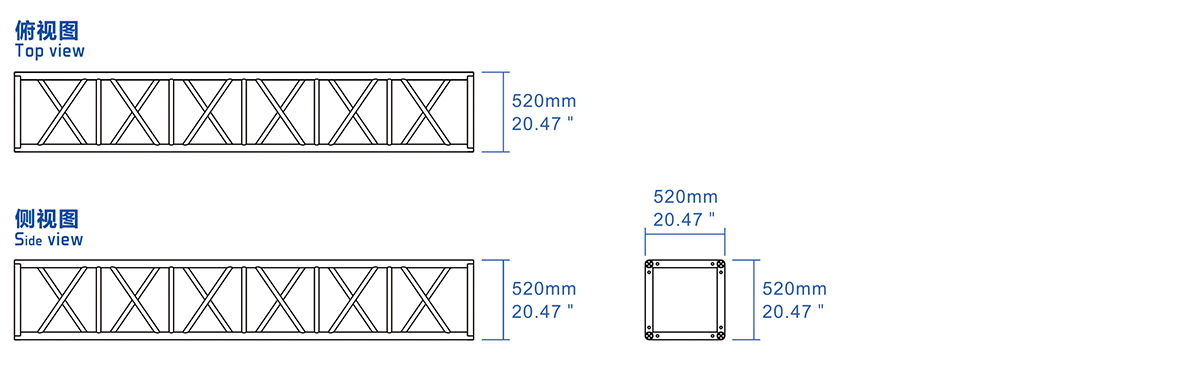

 Dimensions
 Shape  Square  Square
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm Cross Pipe  1.97 x 0.12 in Cross Pipe
 Braces  30 x 2 mm  1.18 x 0.08 in
 Weight  ≈ 13.1 kg/m  ≈ 8.12 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-BC52S]
