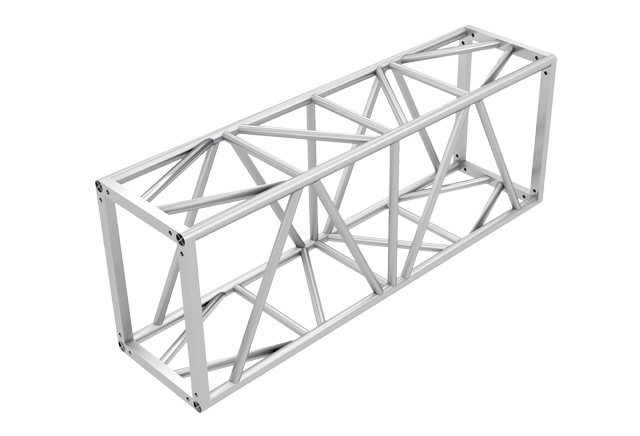

TD-BC5276R


Bolt Mounted  Series



   TD-BC5276R




 Dimensions
 Shape  Rectangular  Rectangular
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm Cross Pipe  1.97 x 0.12 in Cross Pipe
 Braces  38 x 2.5 mm  1.50 x 0.10 in
 Weight  ≈ 20.7 kg/m  ≈ 13.93 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-BC5276R]
