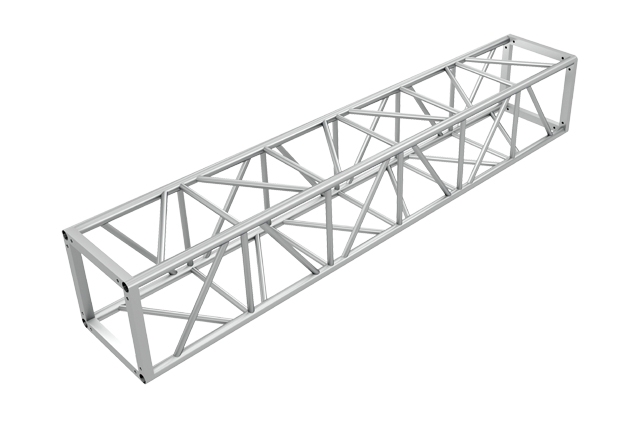

TD-B52S


Bolt Mounted  Series



   TD-B52S




 Dimensions
 Shape  Square  Square
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm   1.97 x 0.12 in
 Braces  30 x 2 mm  1.18 x 0.08 in
 Weight  ≈ 10.98kg/m  ≈ 7.39 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-B52S]
