TD-QC170RF-60-S6

Quick Mount Foldable Series

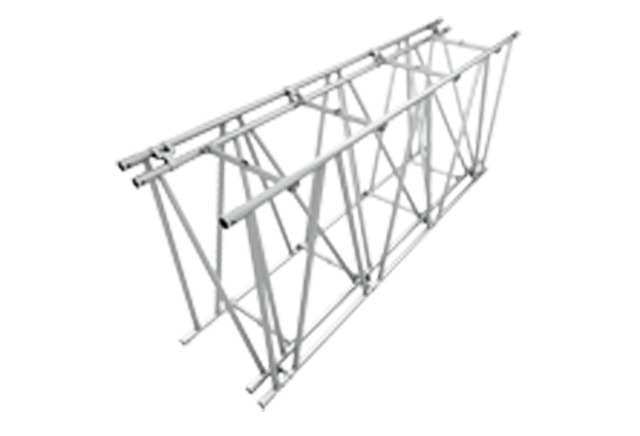

   TD-QC170RF-60-S6

  ·The super strong TD-QC170RF-60-S6 is a model of our high loading, foldable and quick mount series, designed for the need of extra high loading as well as longer span.
·The unique rectangular cross section truss is fixed with strong quick mount couplers at the end of all the pipes.
·Thanks to the patented design of being foldable, cost is reduced by saving ample space up to 70% of both storage and delivering gears
·The welding material is imported and the welding work is done by our qualified skilled craftsmen.
·This is widely suitable for most project







 Dimensions
 Shape  Folding  Folding
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  60 x 3.5 mm Cross Pipe  2.36 x 0.14 in Cross Pipe
 Braces  50 x 3.0 mm  1.97 x 0.12 in
 Weight  ≈ 36 kg/m  ≈ 24.2 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC170RF-60-S6]
