TD-QC112RF-60-S6B


Quick Mount Foldable Series


   TD-QC112RF-60-S6B

  For safety consideration, the truss should be backed up with additional diagonal bracing when using foldable series model TD-QC112RF-60-S60 Truss. Compared with folding truss without diagonal bracing, the additional bracing has a greatly enhance the bearing capacity of the truss and strengthen its structure.

How to use the diagonal bracing

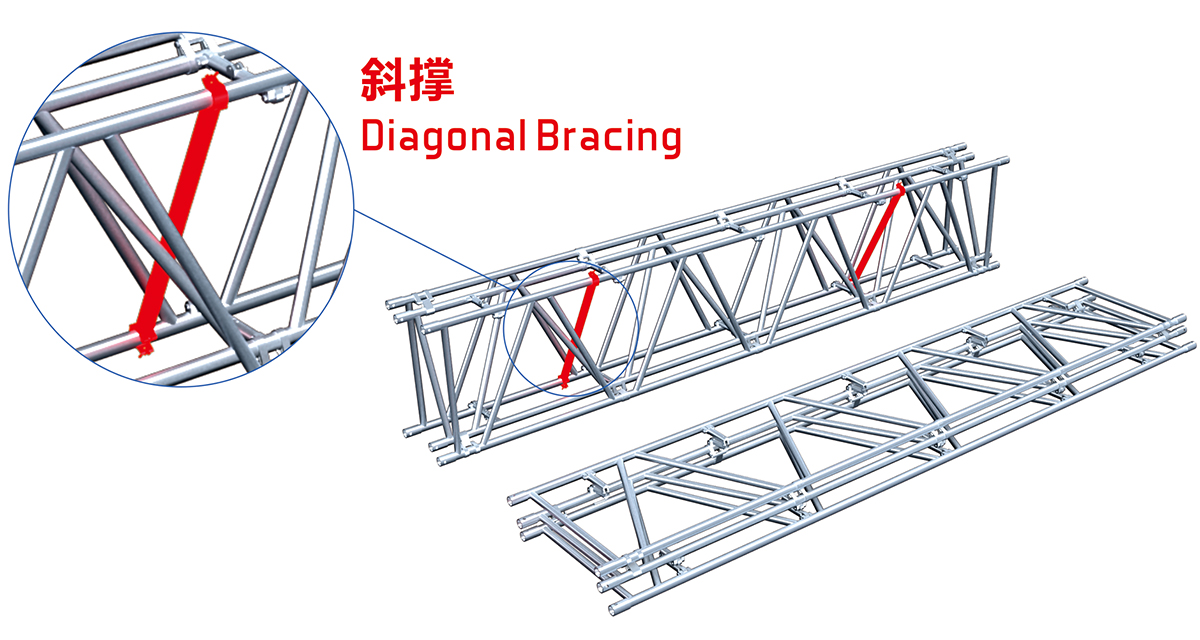

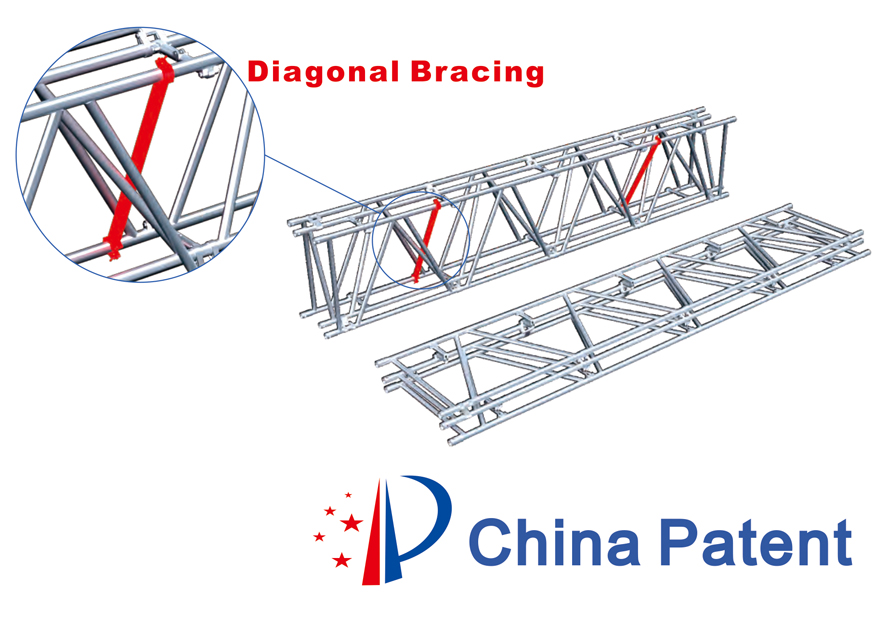

When the folding truss completely opened , Clamp the diagonal bracing on the main chord of the truss, as shown in figure. It is recommended that the additional diagonal bracing should be attached in between main chords every 2 meters of truss span.

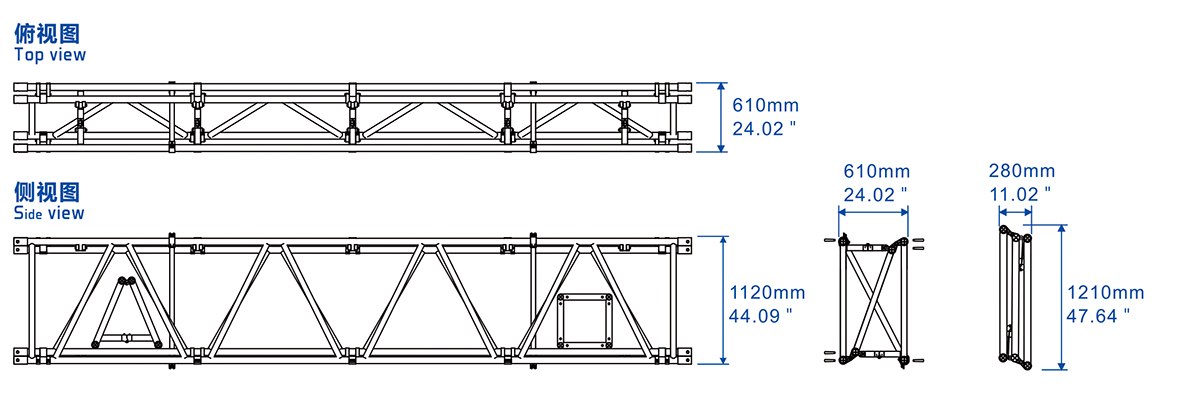

 Dimensions
 Shape  Folding  Folding
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  60 x 3.5 mm Cross Pipe  2.36 x 0.14 in Cross Pipe
 Braces  50 x 3.0 mm  1.97 x 0.12 in
 Weight  ≈ 28.7 kg/m  ≈ 19.32 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC112RF-60-S6B.zip]
