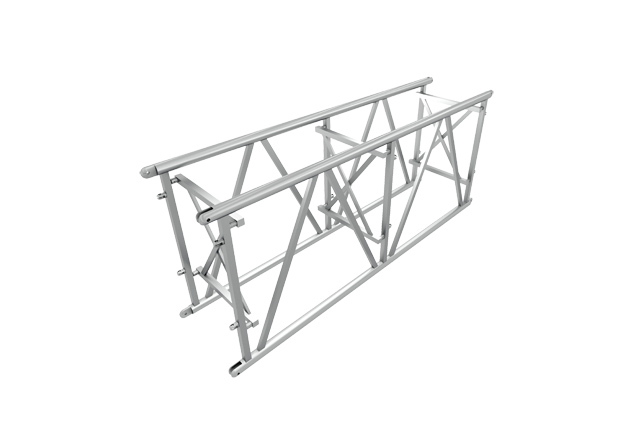

TD-F170R-100


Quick Mount Assembly Series


   TD-F170R-100




 Dimensions
 Shape  Assembly  ssembly
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  100 x 8 mm   3.39 x 0.31 in
 Braces  60 x 60 mm Square Tubing  2.36 x 2.36 in Square Tubing
 Weight  ≈ 55 kg/m  ≈ 37.01 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-F170R-100]
