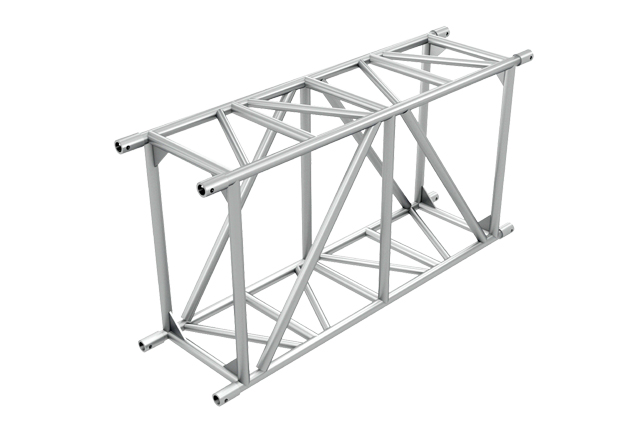

TD-QC101R-50


Quick Mount  Series



   TD-QC101R-50

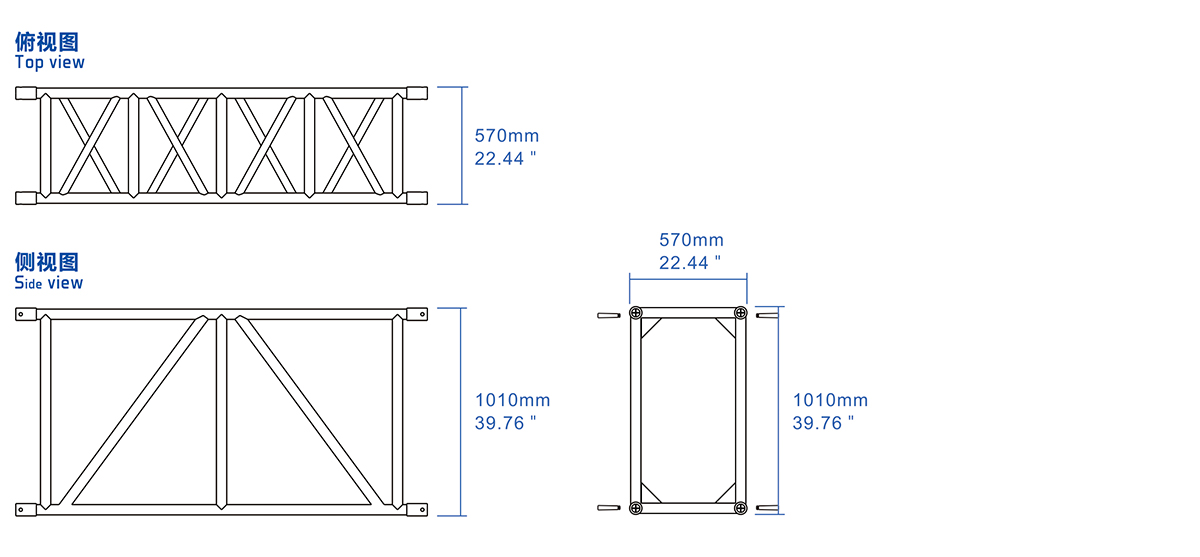

 Dimensions
 Shape  Rectangular  Rectangular
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm Cross Pipe  1.97x 0.12 in  Cross Pipe
 Braces  50 x 3 mm / 38 x 2.5 mm  1.97 x 0.12 in / 1.50 x 0.10 in
 Weight  ≈ 18.4 kg/m  ≈ 12.38 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC101R-50]
