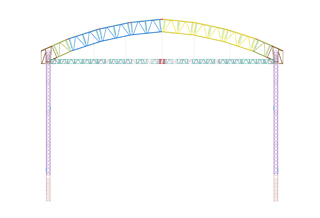

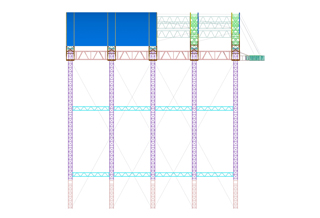

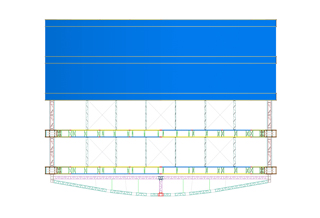

This is one of our Roof Systems, model TD-GIANT ARC ROOF 30 x 21m, covering an area of 667 sq. m. and as high as 22.34 m., suitable for large outdoor concert performances and other activities. The structure is built with our trusses, models TD-QC112RF-60-S6 TD-Q170RT-100, 1.7 m single truss beam and other accessories. With the base integrated to the main structural body it provides a strong support to the vast roof.
The ceiling employs high tension 0.83kg/sq. m vinyl-coated polyester to achieve rain-proof function.
