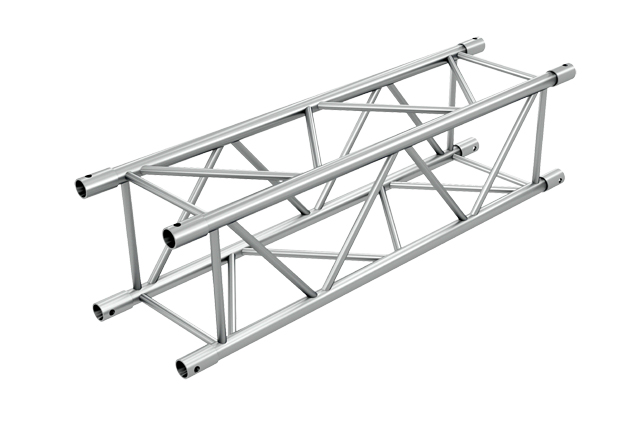

TD-QC54S-60


Quick Mount  Series



   TD-QC54S-60

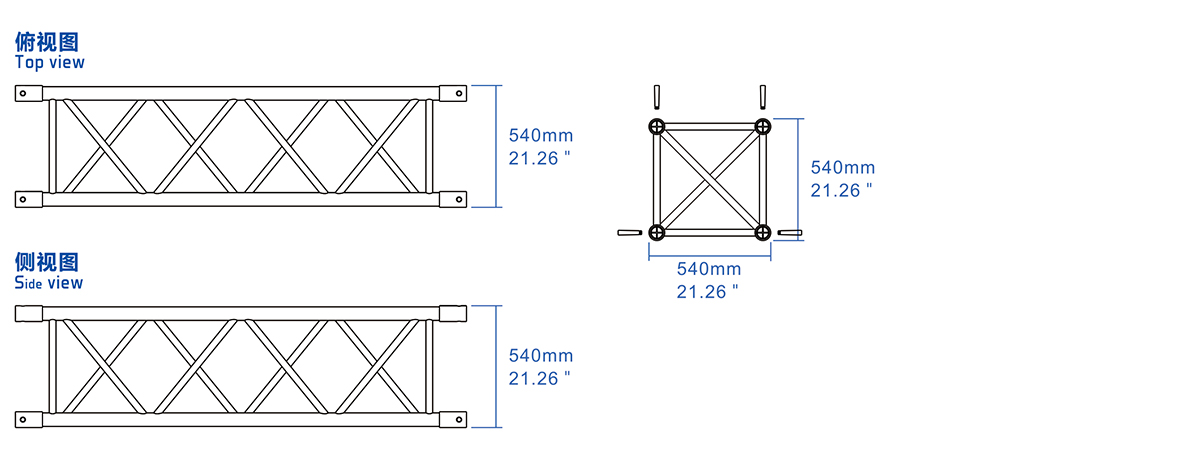

 Dimensions
 Shape  Square  Square
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  60 x 3.5 mm Cross Pipe  2.36 x 0.14 in  Cross Pipe
 Braces  30 x 3 mm  1.18 x 0.12 in
 Weight  ≈ 14.2 kg/m  ≈ 9.55 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC54S-60]
