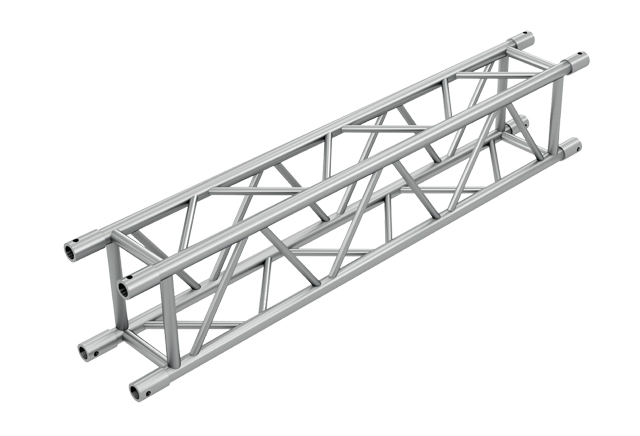

TD-QC3141R-50


Quick Mount  Series



   TD-QC3141R-50




 Dimensions
 Shape  Rectangular  Rectangular
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm Cross Pipe  1.97x 0.12 in  Cross Pipe
 Braces  25 x 2 mm  0.98 x 0.08 in
 Weight  ≈ 9.0 kg/m  ≈ 6.05 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC3141R-50]
