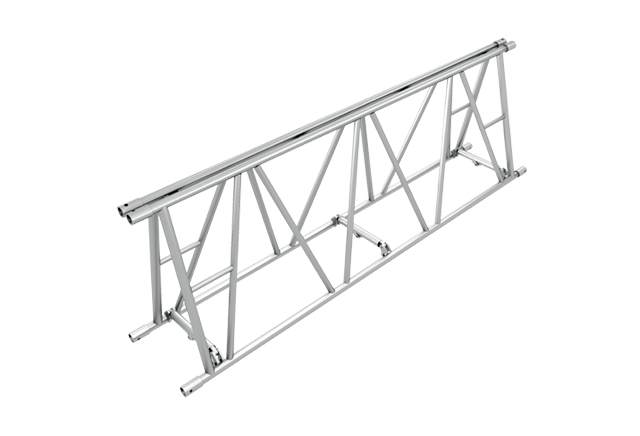

TD-QC101TF-50

Quick Mount Foldable Series

   TD-QC101TF-50





  · The super strong TD-QC101TF-50 is a model of our high loading, foldable and quick mount series, designed for the need of extra high loading as well as longer span.
· The unique rectangular cross section truss is fixed with strong quick mount couplers at the end of all the pipes.
· Thanks to the patented design of being foldable, cost is reduced by saving ample space up to 70% of both storage and delivering gears
· The welding material is imported and the welding work is done by our qualified skilled craftsmen.
· This is widely suitable for most project





 Dimensions
 Shape  Folding  Folding
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm Cross Pipe  1.97 x 0.12 in Cross Pipe
 Braces  38 x 2.5 mm  1.50 x 0.10 in
 Weight  ≈ 13kg/m  ≈ 8.75 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-QC101TF-50.zip]
