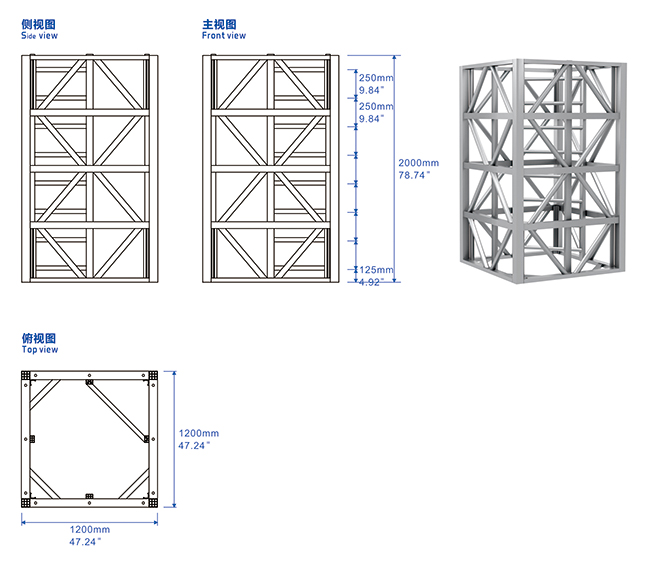

TD-BC120S-75TW

螺栓桁架立柱系列

Bolt Mounted Tower Series


   TD-BC120S-75TW



 规格 Dimensions
 形状 Shape  正方形 Square  正方形 Square
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  75 x 75 mm Square Tubing  2.95 x 2.95 in Square Tubing
 副管 Braces  60 x 60 mm Square Tubing  2.36 x 2.36 in Square Tubing
 重量 Weight  ≈ 11.9 kg/m  ≈ 8.01 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-BC120S-75TW.zip]
