Small truss
Current Position : Home > Products > Small truss
TD-FO6090R-50

插销桁架系列

Quick Mount Series


   TD-FO6090R-50

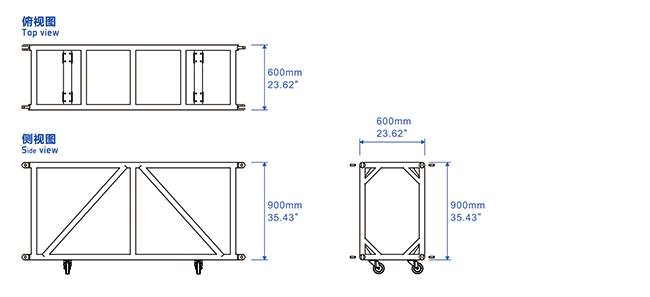

 规格 Dimensions
 形状 Shape  矩形 Rectangular  矩形 Rectangular
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  50 x 6 mm   1.97 x 0.24 in
 副管 Braces  50 x 3 mm  1.97 x 0.12 in
 重量 Weight  ≈ 35.5 kg/m  ≈ 16.08 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-FO6090R-50.zip]
