TD-B45S Series

Model	Outside Diameter	Inside Diameter	Section	Type
TD-B45S Φ3m-4	3 m	2.1 m	4	Bolt Mounted
TD-B45S Φ4m-4	4 m	3.1 m	4	Bolt Mounted
TD-B45S Φ5m-5	5 m	4.1 m	5	Bolt Mounted
TD-B45S Φ6m-6	6 m	5.1 m	6	Bolt Mounted
TD-B45S Φ7m-8	7 m	6.1 m	8	Bolt Mounted
TD-B45S Φ8m-8	8 m	7.1 m	8	Bolt Mounted
TD-B45S Φ9m-9	9 m	8.1 m	9	Bolt Mounted

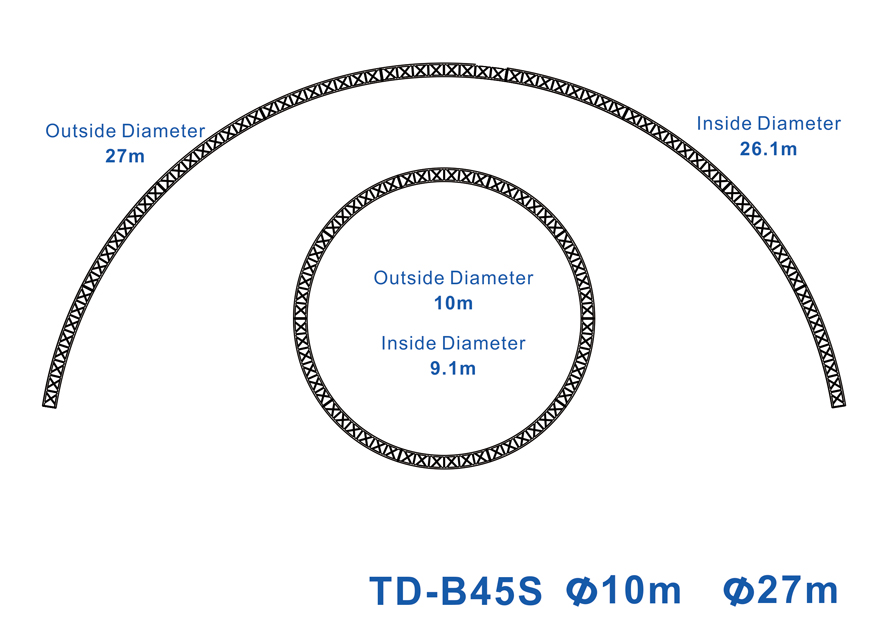

TD-B45S Φ10m-10	10 m	9.1 m	10	Bolt Mounted
TD-B45S Φ11m-10	11 m	10.1 m	10	Bolt Mounted
TD-B45S Φ12m-12	12 m	11.1 m	12	Bolt Mounted
TD-B45S Φ13m-12	13 m	12.1 m	12	Bolt Mounted
-	-	-	-	-
-	-	-	-	-

TD-B45S Φ27m-20	27	26.1 m	20	Bolt Mounted
TD-B45S Φ30m-24	30 m	29.1 m	24	Bolt Mounted
Any size acailable on request

For more details, please download [the file] [Circles and Curved Trusses.zip]
