TD-QC101TF-50

插销桁架折叠系列

Quick Mount Foldable Series

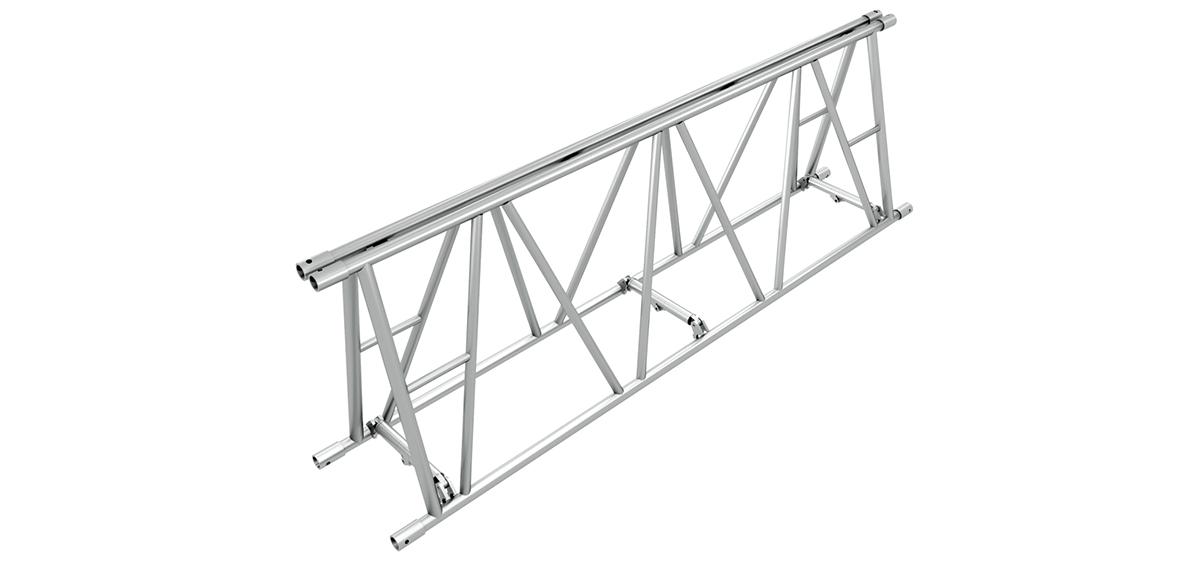

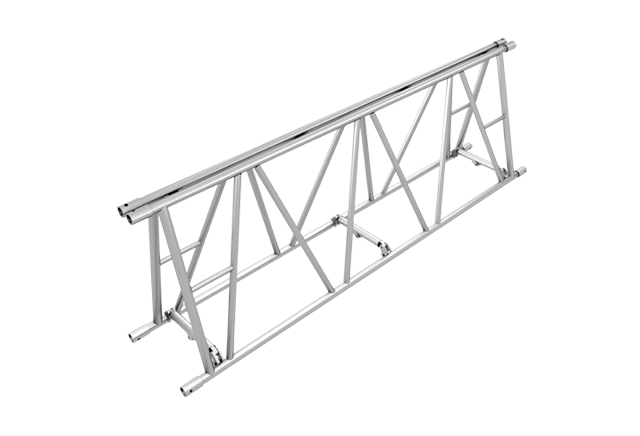

   TD-QC101TF-50


· TD-QC101TF-50折叠桁架可节省70%的仓储及运输空间
· EN AW 6082 T6国际标准材料
· 专利桁架


  · The super strong TD-QC101TF-50 is a model of our high loading, foldable and quick mount series, designed for the need of extra high loading as well as longer span.
· The unique rectangular cross section truss is fixed with strong quick mount couplers at the end of all the pipes.
· Thanks to the patented design of being foldable, cost is reduced by saving ample space up to 70% of both storage and delivering gears
· The welding material is imported and the welding work is done by our qualified skilled craftsmen.
· This is widely suitable for most project

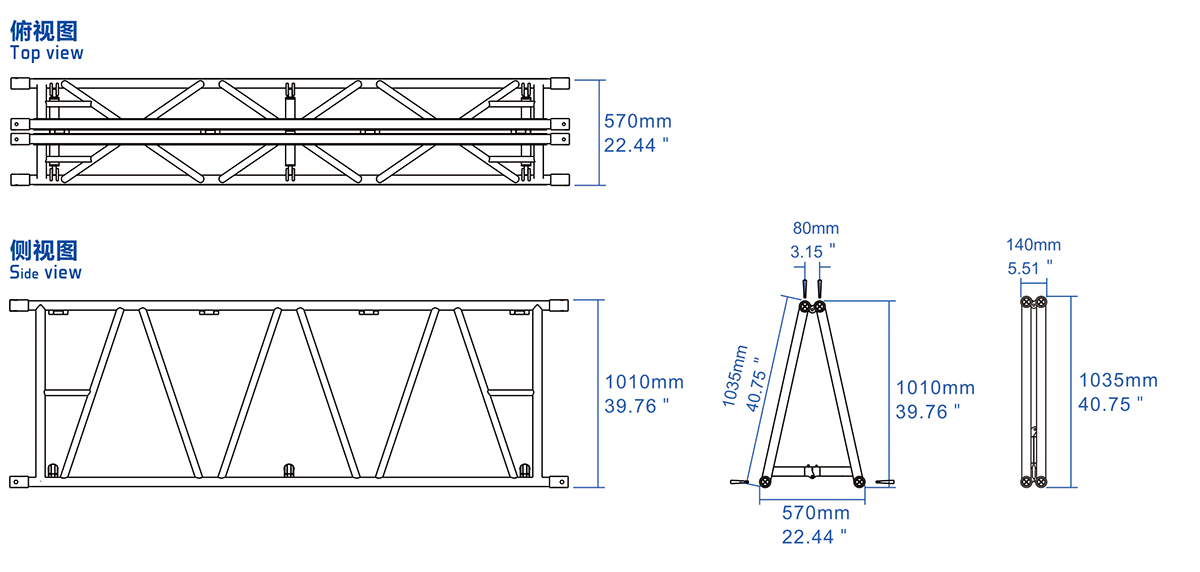

 规格 Dimensions
 形状 Shape  折叠 Folding  折叠 Folding
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  50 x 3 mm Cross Pipe(十字芯)  1.97 x 0.12 in Cross Pipe (十字芯)
 副管 Braces  38 x 2.5 mm  1.50 x 0.10 in
 重量 Weight  ≈ 13kg/m  ≈ 8.75 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




如需了解更详细内容,请下载文件 [TD-QC101TF-50.zip]
