TD-QC112RF-60-S6

插销桁架折叠系列

Quick Mount Foldable Series


   TD-QC112RF-60-S6



· TD-QC120RF-60-S6折叠桁架可节省70%的仓储及运输空间
· EN AW 6082 T6国际标准材料
· 6条主管使整体桁架允许荷载更强

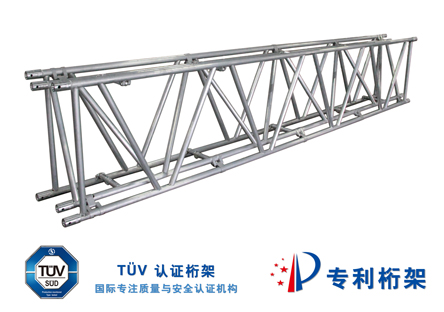

· 专利桁架


  · The super strong TD-QC112RF-60-S6 is a model of our high loading, foldable and quick mount series, designed for the need of extra high loading as well as longer span.
· The unique rectangular cross section truss is fixed with strong quick mount couplers at the end of all the pipes.

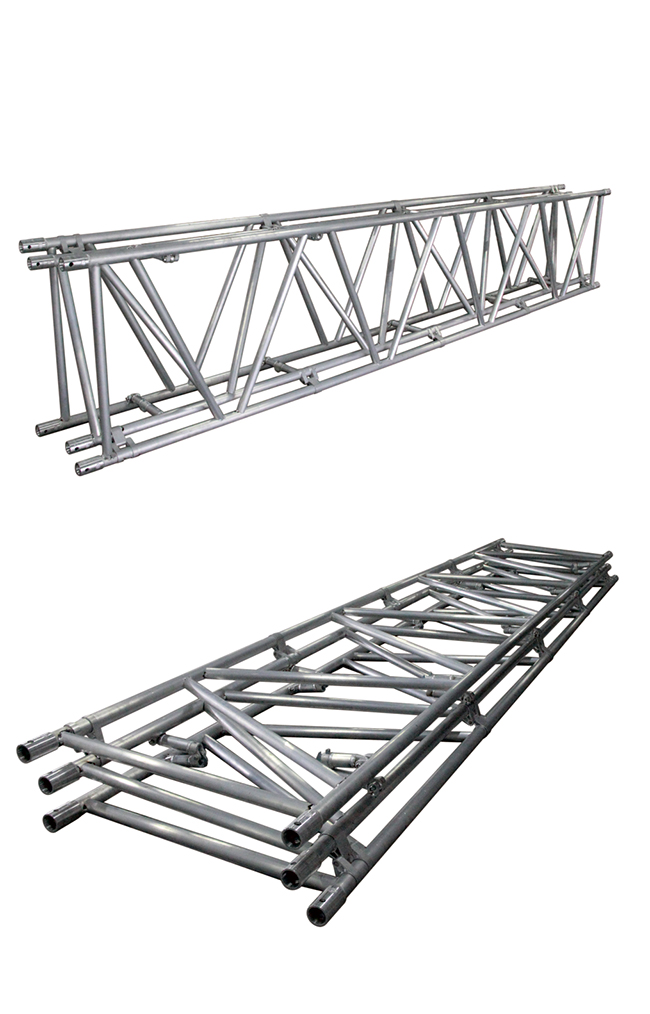

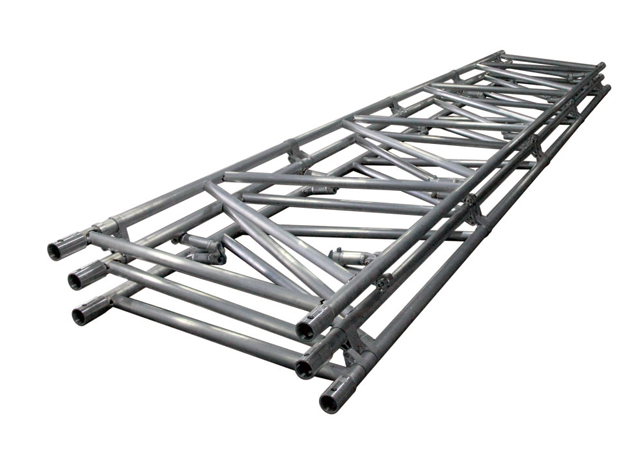

· Thanks to the patented design of being foldable, cost is reduced by saving ample space up to 70% of both storage and delivering gears
· The welding material is imported and the welding work is done by our qualified skilled craftsmen.
· This is widely suitable for most project

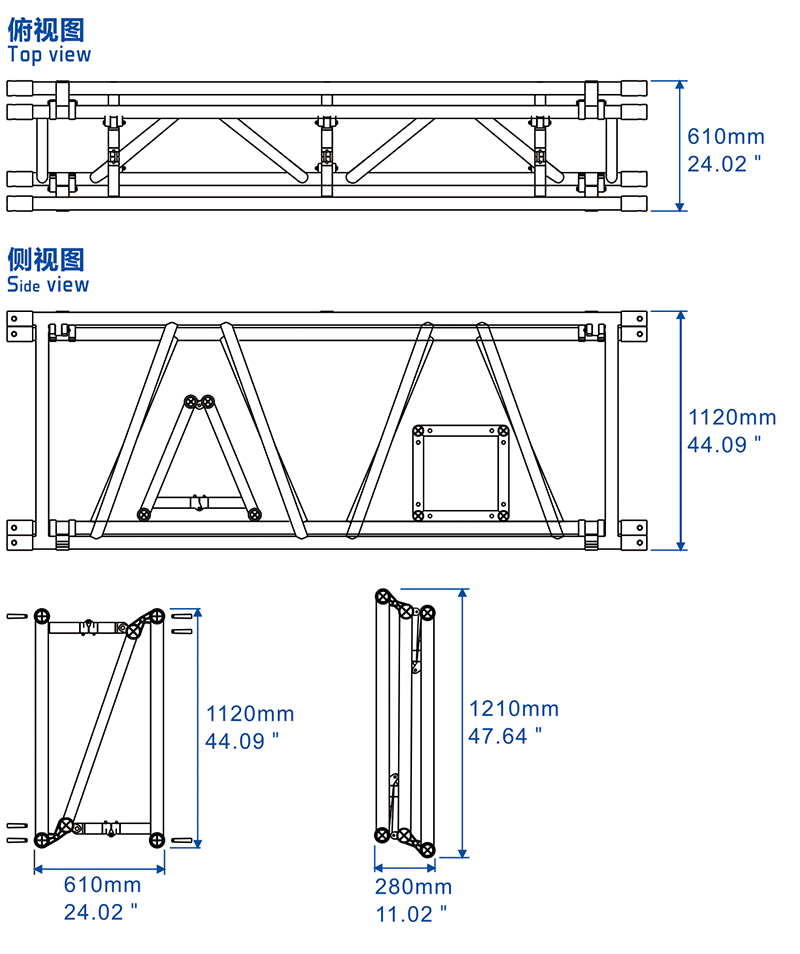

 规格 Dimensions
 形状 Shape  折叠 Folding  折叠 Folding
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  60 x 3.5 mm Cross Pipe(十字芯)  2.36 x 0.14 in Cross Pipe(十字芯)
 副管 Braces  50 x 3.0 mm  1.97 x 0.12 in
 重量 Weight  ≈ 28.7 kg/m  ≈ 19.32 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




如需了解更详细内容,请下载文件 [TD-QC112RF-60-S6.zip]
