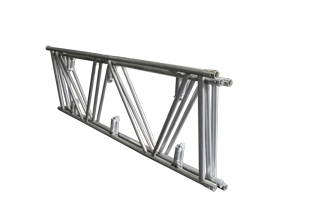

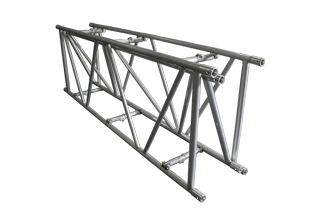

TD-QC101RF-50-S6

插销桁架折叠系列

Quick Mount Foldable Series


   TD-QC101RF-50-S6



· TD-QC101RF-50-S6折叠桁架可节省70%的仓储及运输空间
· EN AW 6082 T6国际标准材料
· 6条主管使整体桁架允许荷载更强
· 专利桁架


  ·The super strong TD-QC101RF-50-S6 is a model of our high loading, foldable and quick mount series, designed for the need of extra high loading as well as longer span.
·The unique rectangular cross section truss is fixed with strong quick mount couplers at the end of all the pipes.
·Thanks to the patented design of being foldable, cost is reduced by saving ample space up to 70% of both storage and delivering gears
·The welding material is imported and the welding work is done by our qualified skilled craftsmen.
·This is widely suitable for most project




 规格 Dimensions
 形状 Shape  折叠 Folding  折叠 Folding
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  50 x 3.0 mm Cross Pipe(十字芯)  1..97 x 0.12 in Cross Pipe(十字芯)
 副管 Braces  38 x 2.5 mm  1.50 x 0.10 in
 重量 Weight  ≈ 20.3 kg/m  ≈ 13.66 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




如需了解更详细内容,请下载文件 [TD-QC101RF-50-S6]
