WBP-9001 Narrow Band UHF Wiress Synthesized Portable Base Pack





WBP-9001

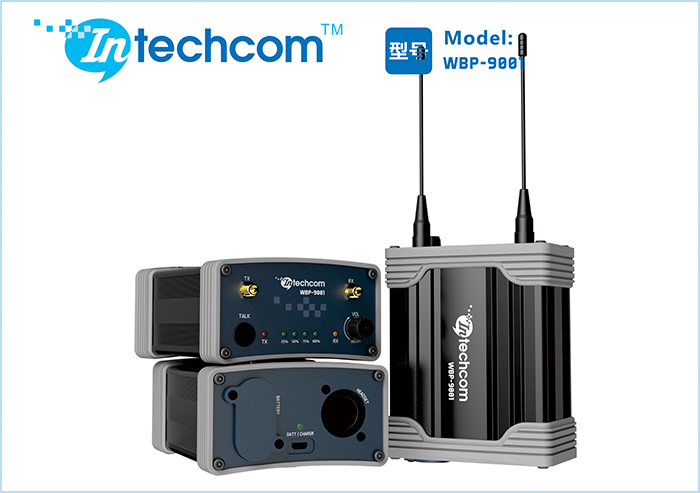

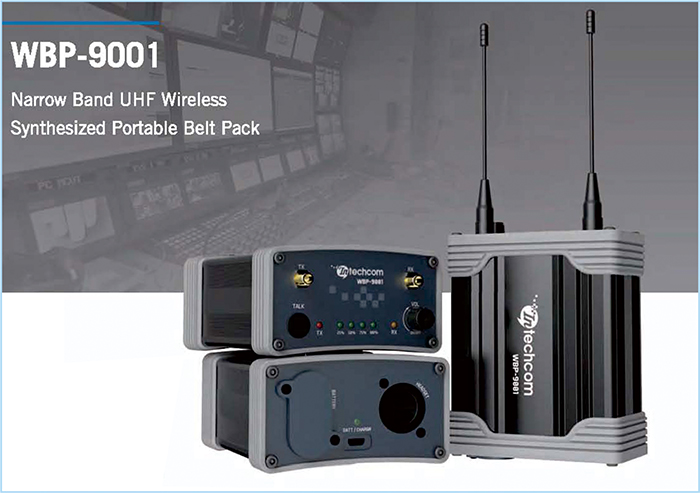

WBP-9001 Narrow Band UHF Wireless Synthesized Portable Base Pack

Features Specifications

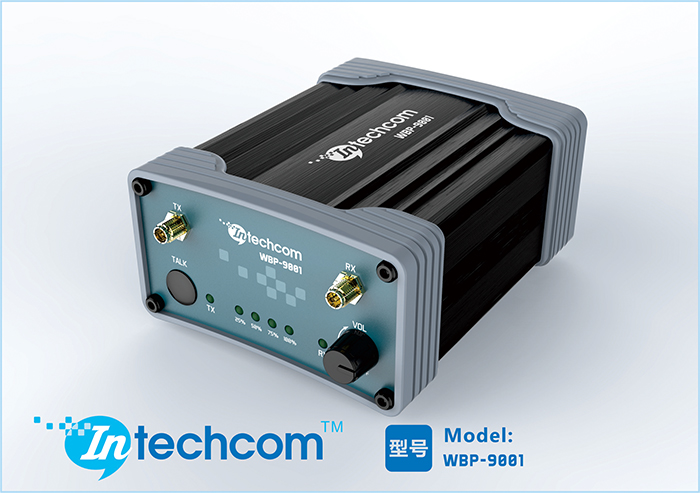

· Channel Select Button
  · Low Battery Light
  · On/Off & Volume Control
  · Receiver RF Indication
  · Transmission RF Indication
  · Talk Button



Color Black
Height 1.65”(41.9 mm)
Depth 5.05”(125.3 mm)
Width 3.75”(482.6 mm)
Weight 1.81 Ibs(0.82kg)
Power Requirements 2 x 3.7v Battery (@3000mA)
Operating Temperature -4︒F to 130︒F (-20︒C to 55︒C)
Antenna 1/4 Wave (supp;ied), Screw type, Replaceable Tx and RX
Current Draw 140 mA Push-to-Talk, Talk On
Distortion <1% at full deviation

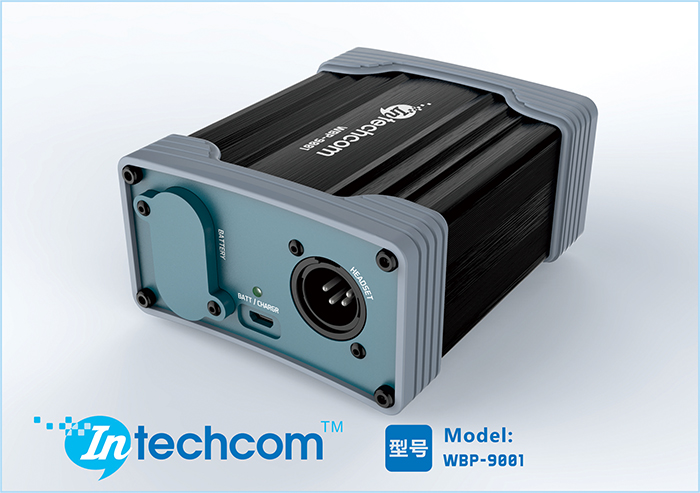

Charge Port mini-USB
FCC ID B5DM518 (TX 470-608 MHz)
B5DM515 (TX 614-746 MHz)
Transmit Power 100mw / 10MW
Frequency Response 300 Hz - 8 KHz
Image Rejection 70 dB or better
Local Headset Output 40 mW output into 600W 1％ Distortion
Microphone Input Sensitivity 7mW
RF Frequency Range 470-608 MHz, 614-740 MHz
RF Frequency Stability ≦2.5PPM
RF Senstvity <0.7 µV for 12 Db SINAD
Squelch Threshold 20 dB SINAD About 1.0 µV







For more details, please download [the file] []
