WI-8004 Narrow Band UHF Synthesized Wiress Intercom Base Sat
Current Position ： Home > Products > WI-8004 Narrow Band UHF Synthesized Wiress Intercom Base Sat
WI-8004





WI-8004

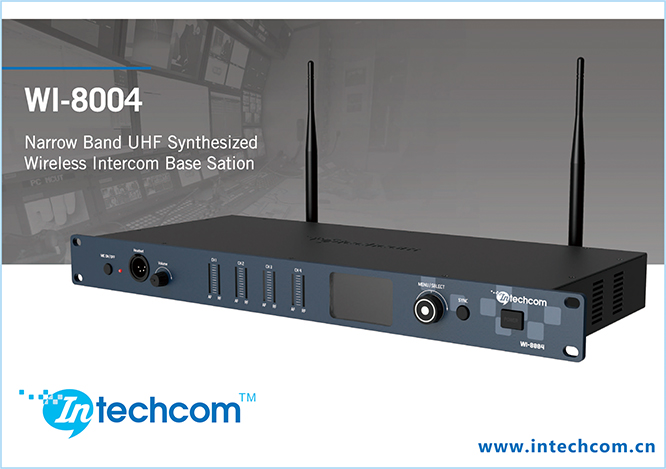

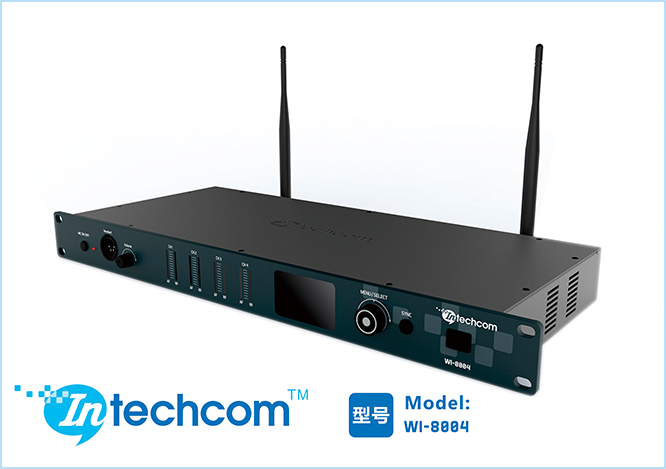

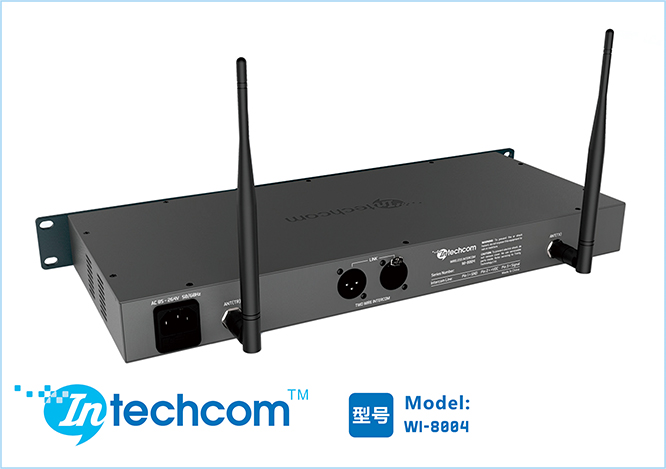

Narrow Band UHF Synthesized Wireless Intercom Base Sation

Features Specifications
· Base Station LCD Allows the User to easily moniter the beltpack’s status
· Base Stations are Table or Rack Mountable
· Automatically or Manual Finds the Best Channels on Which to Operate
· Compatible with Telex, Clear-Com, ＆ Other Wired Intercom Types
· Convenient IEC Power Connector on the Base Station
· Full Duplex (Simultaneous Talk ＆ Listen ) Operation
· Talk Button and Volume Control



Color Black
Height 1.72”(42.7 mm)
Depth 14”(355.6 mm)
Width 3.75”(482.6 mm)
 Weight 7.12 Ibs(3.23kg)
Power Requirements 100-240 VAC, 50-60 Hz, IEC receptacle
Storage Temperature -4︒F to 130︒F (-20︒C to 55︒C)
Antenna 1/4
Form Factor Rack Mount 19”
Freuqency Band of Operation 470-608 MHz, 614-740 MHz
Freuqency Response 300 Hz -8 KHz
Local Headset Output 40 mW output into 600Ώ1％Distortion
Microphone Input Sensitivity 9 mv
Modulation Type FM
Radiatep Harmonics and Spurious Exceeds FCC specifications
RF Frepuency Range 470-608 NHz, 614-740 MHz
RF Frepuency Stability ≦2.5PPM
Transmit Power 100 mW Max.(High ),10 Mw(Normal)
Wireless Technology UHF
Modulation Limiter Peak-Responding Compressor







For more details, please download [the file] [intechcom WIRELESS INTERCOM SYSTEM]
