BP-1001-FL

	Performance.

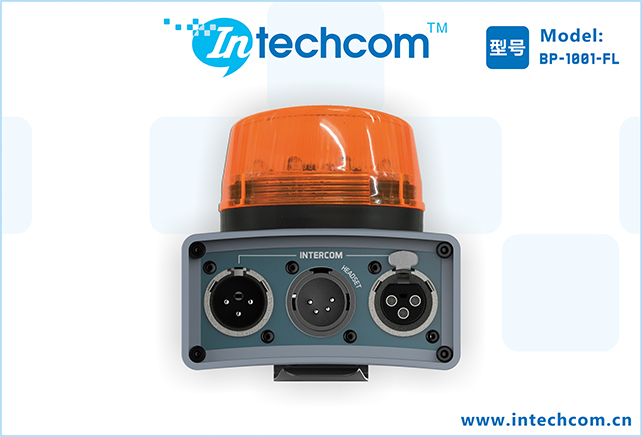

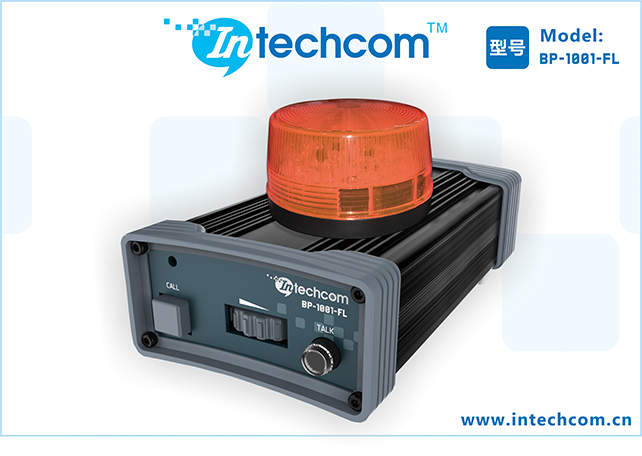

	The following intechcom are for the BP-1001-FL Beltpack. 1. Plug a headset into the XLR type 4-pin socket on the back of the unit. 2. Plug the standard microphone cable from your power supply or master station into the XLR 3-pin type socket on the back of the unit. 3. Press the mic button and turn up the ‘Listen level’ control on your unit and others on the same circuit as your - self. 4. You should now be able to communicate with any of these other outstations. 5. The thumb operated ‘Listen-level’ control regulates the loudness of your headset ear phone only. It has NO effect on the microphone level. 6. The microphone amplifier gain is factory adjusted to suit most types of headset microphones. 7. The flash signal push button flashes a light in all outstations co to your circuit. It is used to attract attention in the event that a user has removed his/her headset. 8. The BP-1001FL is compatible with Clear-Com and other unbalanced party-line headset intercom systems. 9. BP-1001-FL includes all the functionalities of the BP-1001 beltpack and plus the flash light properties on the BP-1001 .

	Technical Specifications:
	·Voltage: 24V DC nominal . 18 - 30V DC acceptable . ·Current consumption: 20 mA with speech, 30 mA with sig nal lamp activated . ·Talk: Push on/push off, self indicating switch . ·Listen level: Thumbwheel operated potentiometer . ·DC = + 24v ·Dimensions : (H x W x D): 88 x 96 x 145mm ·Weight : 0.4kg

For more details, please download [the file] [intechcom Intercom System.zip]
