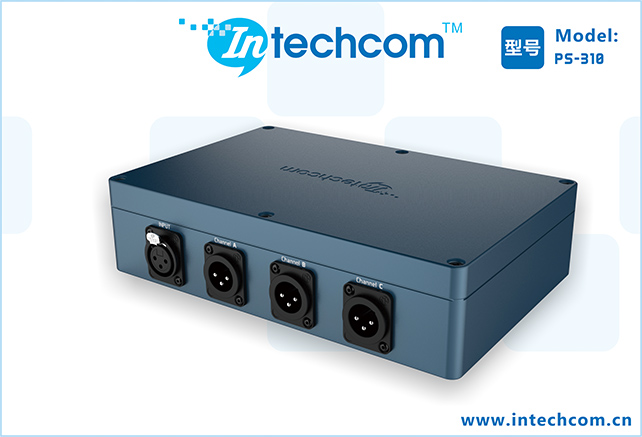

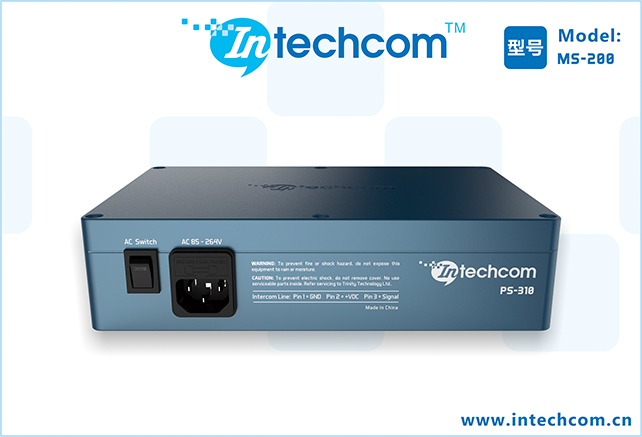

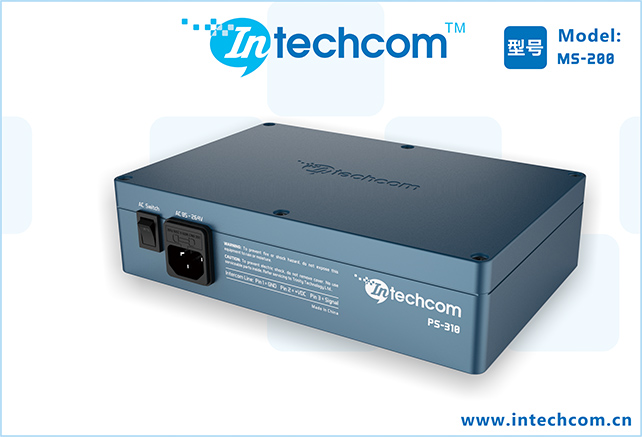

PS-310
| Performance . | ||
| The PS-310 power supply is intended to be used in systems which require only one power supply circuit. Up to 25 belt-packs may run on this system without creating hum or overheating the power supply. We recommend no more than two loudspeaker stations Older belt-packs, particularly those with incandescent (rather than LED) signal lamps should be added with caution as they draw much more current . The PS-310 system interface provides precise voltage regulation, further smoothing of the DC current (AC hum elimination), automatic overload/short-circuit protection, the PS-320 is dual power supply provide automatic change over function . |
||
| Technical Specifications: | ||
| ·Ac power input:85~264V. ·Power output : 24 volts DC regulated @ 2.5A DC output . ·Power consumption : (At 220V/AC) 550W . ·Dimensions : (H x W x D): PS-310: 222 x 145 x 55mm / PS-320: 260 x 185 x 96mm ·Weight : PS-310: 0.8kg / PS-320: 1.8kg |
||
 |
||
For more details, please download [the file] [intechcom Intercom System.zip]
