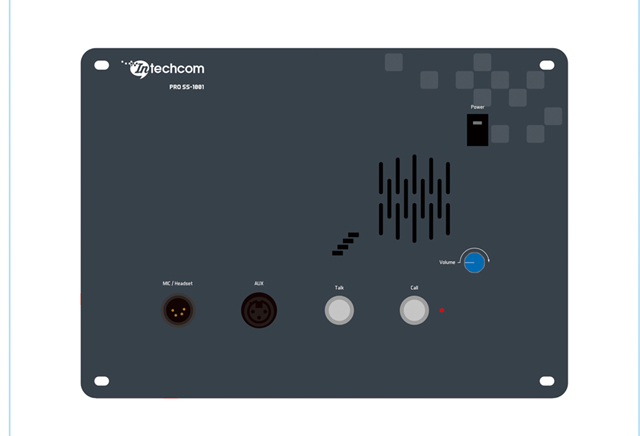

Single channel wall mount statio .
PRO-SS-1001
| Performance. | ||||
| 1. Intechcom Pro-SS-1001 Talkback Loudspeaker Stations operate in one channel modes. 2. Simultaneous talk and listen [full duplex] , when a gooseneck microphone is plugged into the front panel. 3. 50 Watt audio amplifier and quality loudspeaker provide highly intelligible reproduction. 4. Front panel controls provide a volume control which regulates the level of the loudspeaker. 5. Main power switch(Front Panel)illuminated ,Indicates AC voltage present . 6. The‘ Call‘push button flashes a light in all outstations connected to your circuit. It is used to attract attention in the event that a user has removed his/her headset. 7. The ‘Talk’ button and turn up the ‘Listen level’ control on your unit and others on the same circuit as your - self ,you should now be able to communicate with any of these other outstations. 8. The Pro-SS1001 station allowing many beltpacks to be connected together. without significantly changing the circuit performance. The termination networks are automatically removed and inserted during circuit linking to ensure a constant impedance for all circuits . |
||||
| Technical Specifications: | ||||
|
||||
For more details, please download [the file] [intechcom Intercom System.zip]
